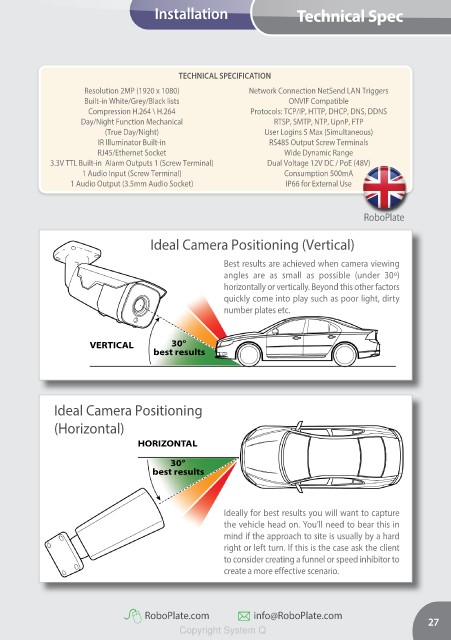

Page 27 - RoboPlate-ANPR-CCTV

Installation Technical Spec

TECHNICAL SPECIFICATION
Resolution 2MP (1920 x 1080) Network Connection NetSend LAN Triggers
Built-in White/Grey/Black lists ONVIF Compatible
Compression H.264 \ H.264 Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS
Day/Night Function Mechanical RTSP, SMTP, NTP, UpnP, FTP
(True Day/Night) User Logins 5 Max (Simultaneous)
IR Illuminator Built-in RS485 Output Screw Terminals
RJ45/Ethernet Socket Wide Dynamic Range
3.3V TTL Built-in Alarm Outputs 1 (Screw Terminal) Dual Voltage 12V DC / PoE (48V)
1 Audio Input (Screw Terminal) Consumption 500mA
1 Audio Output (3.5mm Audio Socket) IP66 for External Use

RoboPlate

Ideal Camera Positioning (Vertical)

Best results are achieved when camera viewing
angles are as small as possible (under 30º)
horizontally or vertically. Beyond this other factors
quickly come into play such as poor light, dirty
number plates etc.
VERTICAL 30°
best results
VERTICAL 30°
best results

Ideal Camera Positioning
(Horizontal)
HORIZONTAL
30°
HORIZONTAL
best results
30°
best results
Ideally for best results you will want to capture
the vehicle head on. You’ll need to bear this in
mind if the approach to site is usually by a hard
right or left turn. If this is the case ask the client
to consider creating a funnel or speed inhibitor to
create a more effective scenario.
