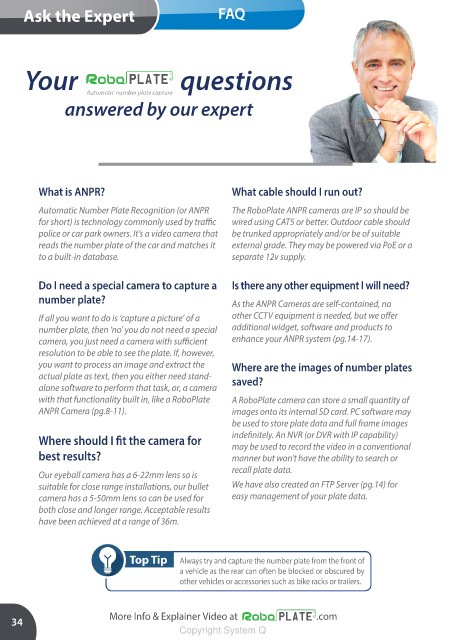

Ask the Expert                       FAQ




      Your                    questions


             answered by our expert








        What is ANPR?                       What cable should I run out?

        Automatic Number Plate Recognition (or ANPR   The RoboPlate ANPR cameras are IP so should be
        for short) is technology commonly used by traffic   wired using CAT5 or better. Outdoor cable should
        police or car park owners. It’s a video camera that   be trunked appropriately and/or be of suitable
        reads the number plate of the car and matches it   external grade. They may be powered via PoE or a
        to a built-in database.             separate 12v supply.

        Do I need a special camera to capture a   Is there any other equipment I will need?
        number plate?                       As the ANPR Cameras are self-contained, no
        If all you want to do is ‘capture a picture’ of a   other CCTV equipment is needed, but we offer
        number plate, then ‘no’ you do not need a special   additional widget, software and products to
        camera, you just need a camera with sufficient   enhance your ANPR system (pg.14-17).
        resolution to be able to see the plate. If, however,
        you want to process an image and extract the   Where are the images of number plates
        actual plate as text, then you either need stand-  saved?
        alone software to perform that task, or, a camera
        with that functionality built in, like a RoboPlate   A RoboPlate camera can store a small quantity of
        ANPR Camera (pg.8-11).              images onto its internal SD card. PC software may
                                            be used to store plate data and full frame images
        Where should I fit the camera for   indefinitely. An NVR (or DVR with IP capability)
                                            may be used to record the video in a conventional
        best results?                       manner but won’t have the ability to search or
                                            recall plate data.
        Our eyeball camera has a 6-22mm lens so is
        suitable for close range installations, our bullet   We have also created an FTP Server (pg.14) for
        camera has a 5-50mm lens so can be used for   easy management of your plate data.
        both close and longer range. Acceptable results
        have been achieved at a range of 36m.


                         Top Tip  Always try and capture the number plate from the front of
                                  a vehicle as the rear can often be blocked or obscured by
                                  other vehicles or accessories such as bike racks or trailers.


                     More Info & Explainer Video at         .com
