Roboplate ™ Features

Standalone ANPR CCTV Cameras & No Software or NVR Required

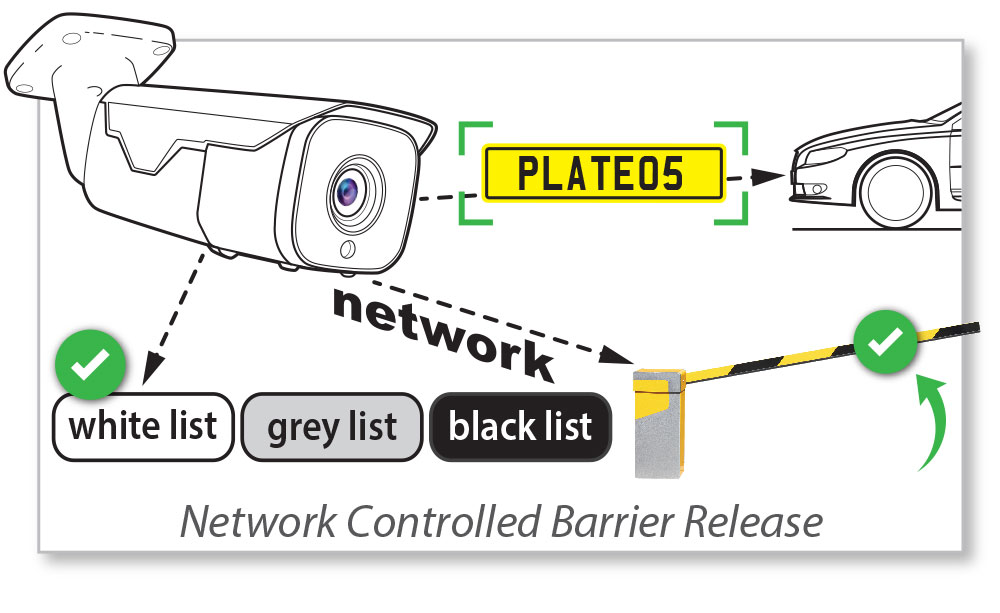

White List Match Triggers Built-In Relay


Black List Match Keeps Relay Closed


Email Notification of White or Black List Matches

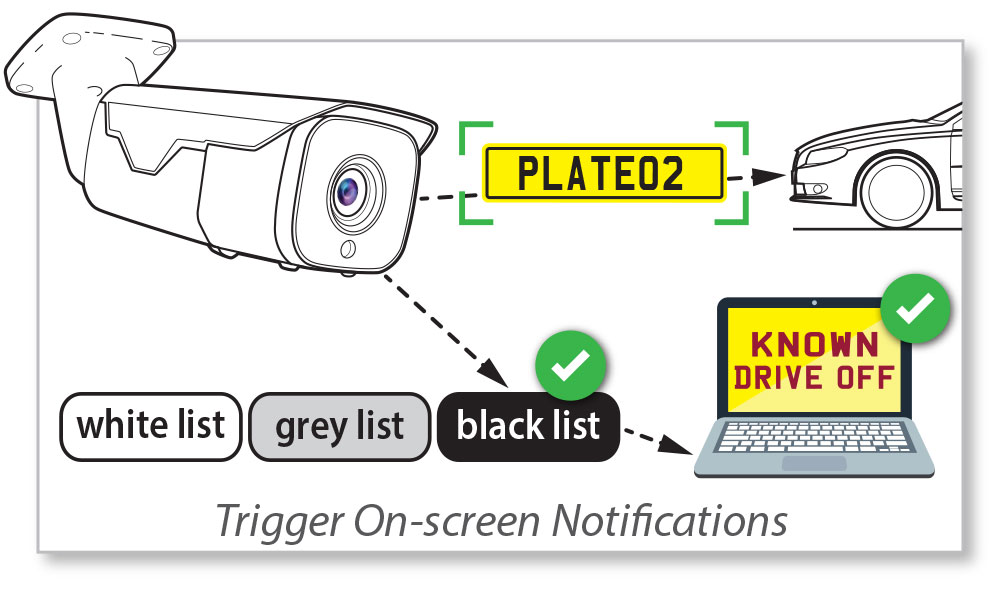

NETsend Controls over a LAN


Alarm Output

Roboplate cameras have a built in 3.3V TTL output relay to control compatible 3rd party devices. Great for traffic control applications.

Audio Output

Upload messages directly to the camera for playing on detection of a list match.

RS485 Output

Send RS485 commands to devices such as a PTZ camera or the MP3 message player VoiceOFF.

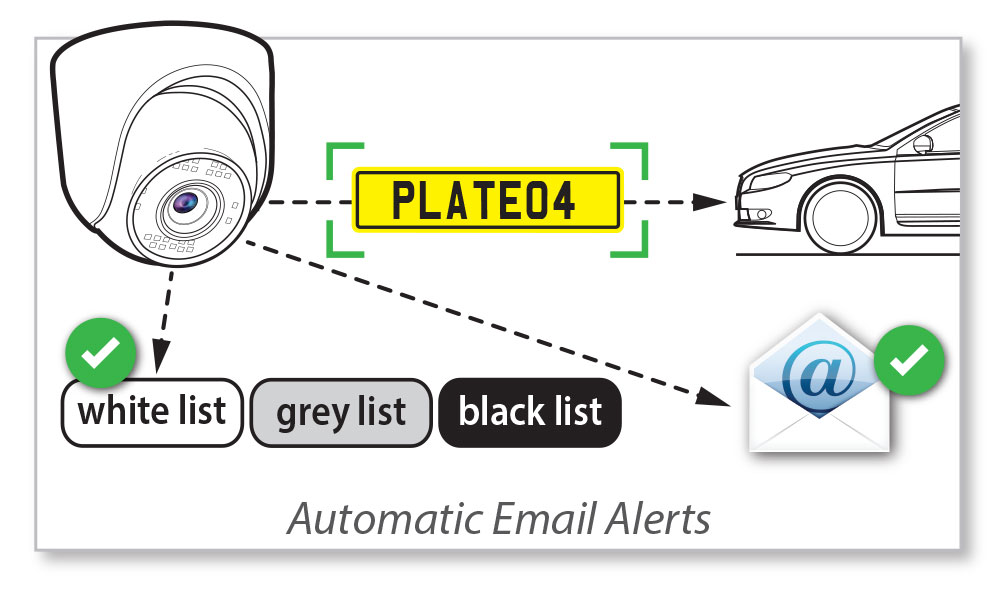

Email Alerts

Receive an email notification with image to your phone or desktop on a successful database match.

SD Card Storage

For easy storage and management of your list and data results.

FTP Upload

RoboPlate free FTP upload software lets you save all your ANPR matches to the cloud.

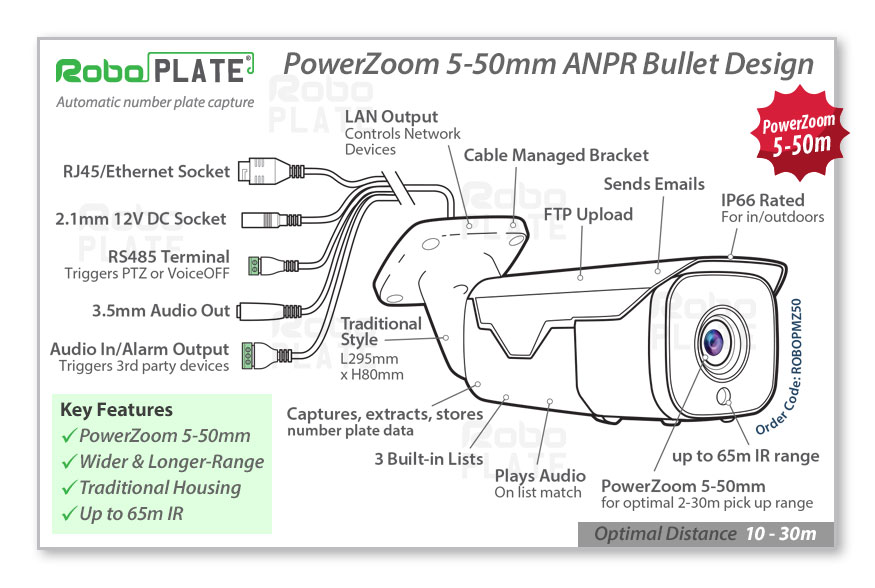

Camera Features

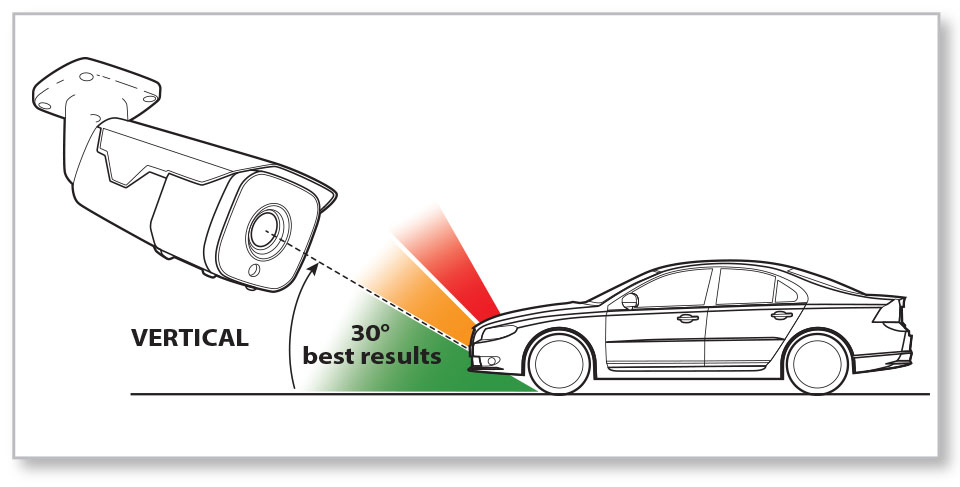

Ideal Camera Positioning (Vertical)

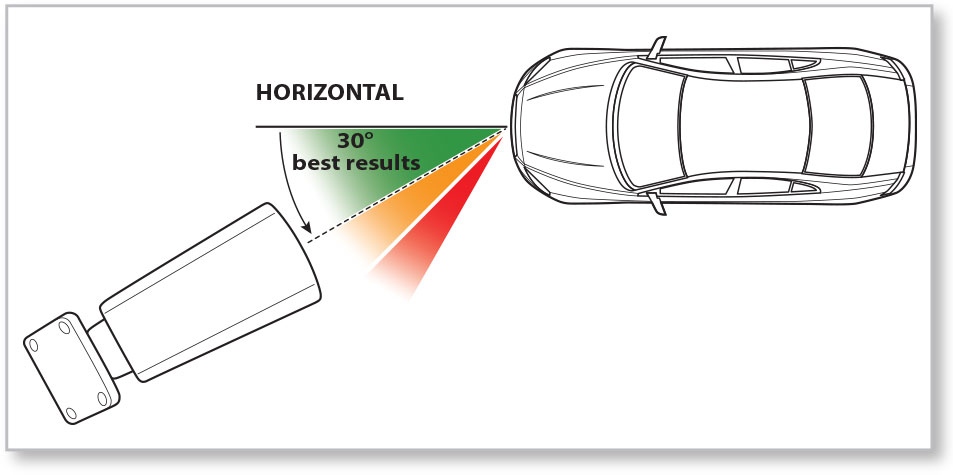

Ideal Camera Positioning (Horizontal)


Technical Specification

  • Resolution 2MP (1920 x 1080)
  • Built-in White/Grey/Black lists
  • Compression H.264 \ H.264
  • Day/Night Function Mechanical
  • (True Day/Night)
  • IR Illuminator Built-in
  • RJ45/Ethernet Socket
  • 3.3V TTL Built-in Alarm Outputs 1(Screw Terminal)
  • 1 Audio Input (Screw Terminal)
  • 1 Audio Output (3.5mm Audio Socket)
  • Network Connection NetSend LAN Triggers
  • ONVIF Compatible
  • Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS
  • RTSP, SMTP, NTP, UpnP, FTP
  • User Logins 5 Max (Simultaneous)
  • RS485 Output Screw Terminals
  • Wide Dynamic Range
  • Dual Voltage 12V DC / PoE (48V)
  • Consumption 500mA
  • IP66 for External Use

AND MORE...
