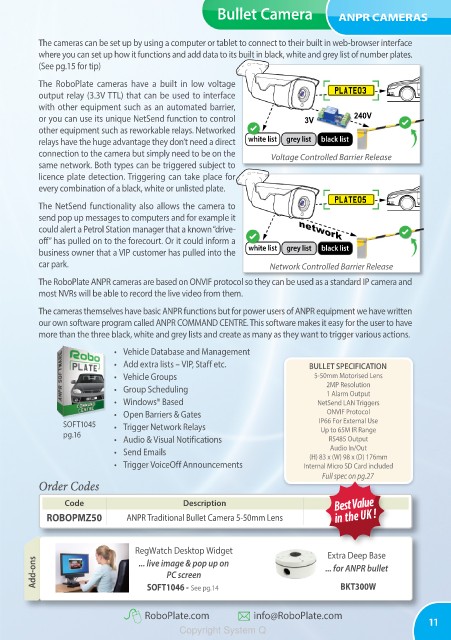

Page 11 - RoboPlate-ANPR-CCTV

Bullet Camera ANPR CAMERAS

The cameras can be set up by using a computer or tablet to connect to their built in web-browser interface
where you can set up how it functions and add data to its built in black, white and grey list of number plates.
(See pg.15 for tip)
The RoboPlate cameras have a built in low voltage
output relay (3.3V TTL) that can be used to interface PLATE03
with other equipment such as an automated barrier,
or you can use its unique NetSend function to control 3V 240V
other equipment such as reworkable relays. Networked
relays have the huge advantage they don’t need a direct white list grey list black list
connection to the camera but simply need to be on the Voltage Controlled Barrier Release
same network. Both types can be triggered subject to
licence plate detection. Triggering can take place for
every combination of a black, white or unlisted plate.
PLATE05
The NetSend functionality also allows the camera to
send pop up messages to computers and for example it
could alert a Petrol Station manager that a known “drive-
off” has pulled on to the forecourt. Or it could inform a
business owner that a VIP customer has pulled into the white list grey list black list
car park. Network Controlled Barrier Release
The RoboPlate ANPR cameras are based on ONVIF protocol so they can be used as a standard IP camera and
most NVRs will be able to record the live video from them.

The cameras themselves have basic ANPR functions but for power users of ANPR equipment we have written
our own software program called ANPR COMMAND CENTRE. This software makes it easy for the user to have
more than the three black, white and grey lists and create as many as they want to trigger various actions.
• Vehicle Database and Management
• Add extra lists – VIP, Staff etc. BULLET SPECIFICATION
• Vehicle Groups 5-50mm Motorised Lens
• Group Scheduling 2MP Resolution
1 Alarm Output
• Windows® Based NetSend LAN Triggers
• Open Barriers & Gates ONVIF Protocol
SOFT1045 • Trigger Network Relays IP66 For External Use
pg.16 Up to 65M IR Range
• Audio & Visual Notifications RS485 Output
Audio In/Out
• Send Emails (H) 83 x (W) 98 x (D) 176mm
• Trigger VoiceOff Announcements Internal Micro SD Card included
Full spec on pg.27
Order Codes
Best Value
Code Description --- Special Offer Price ---
£479
ROBOPMZ50 ANPR Traditional Bullet Camera 5-50mm Lens in the UK !

RegWatch Desktop Widget Extra Deep Base
Add-ons ... live image & pop up on ... for ANPR bullet
PC screen
BKT300W
SOFT1046 -
See pg.14
RoboPlate.com info@RoboPlate.com
11
